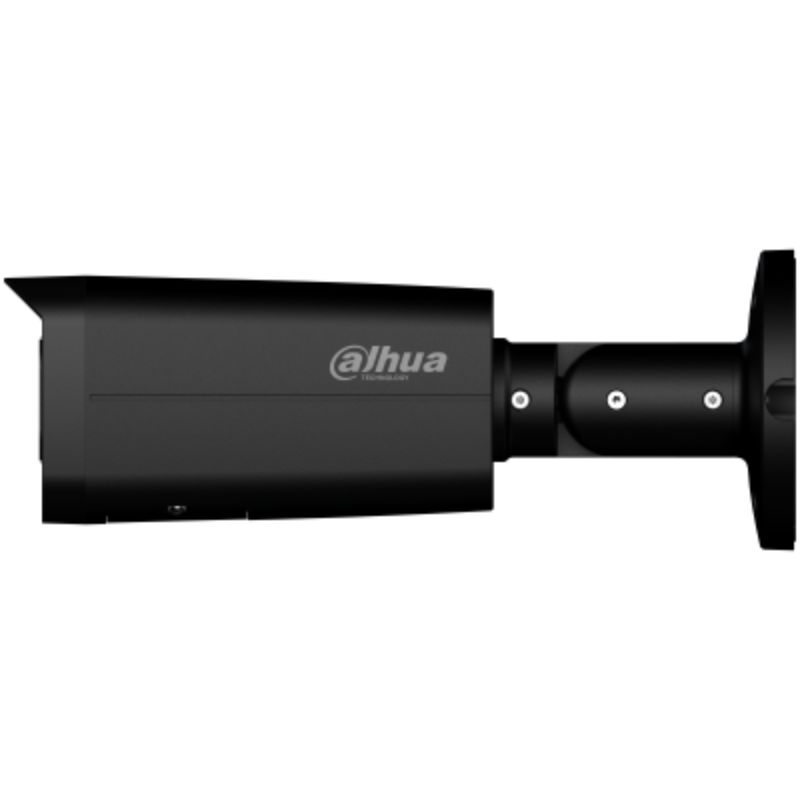

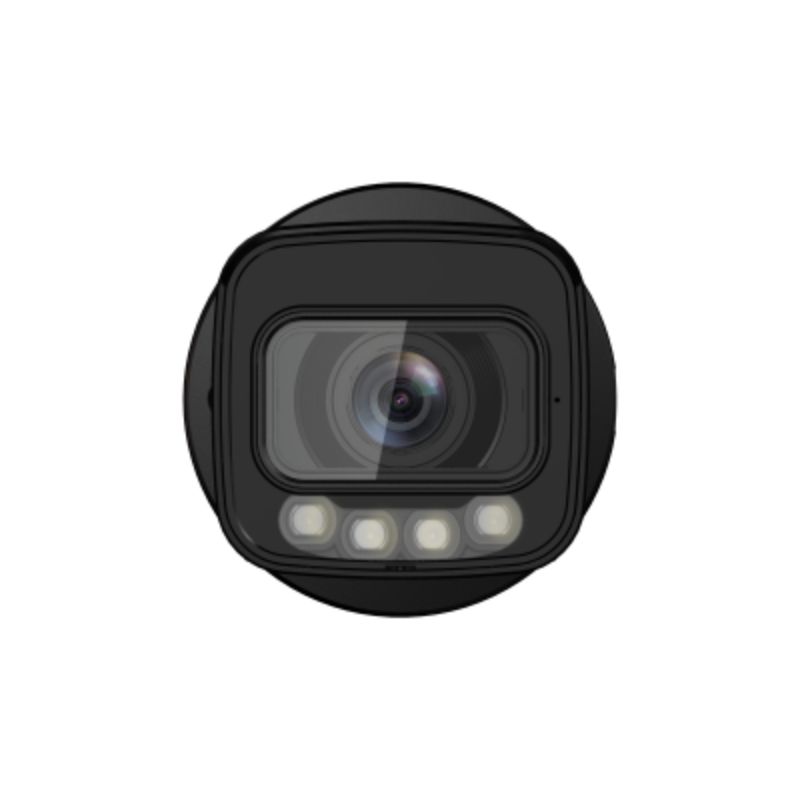

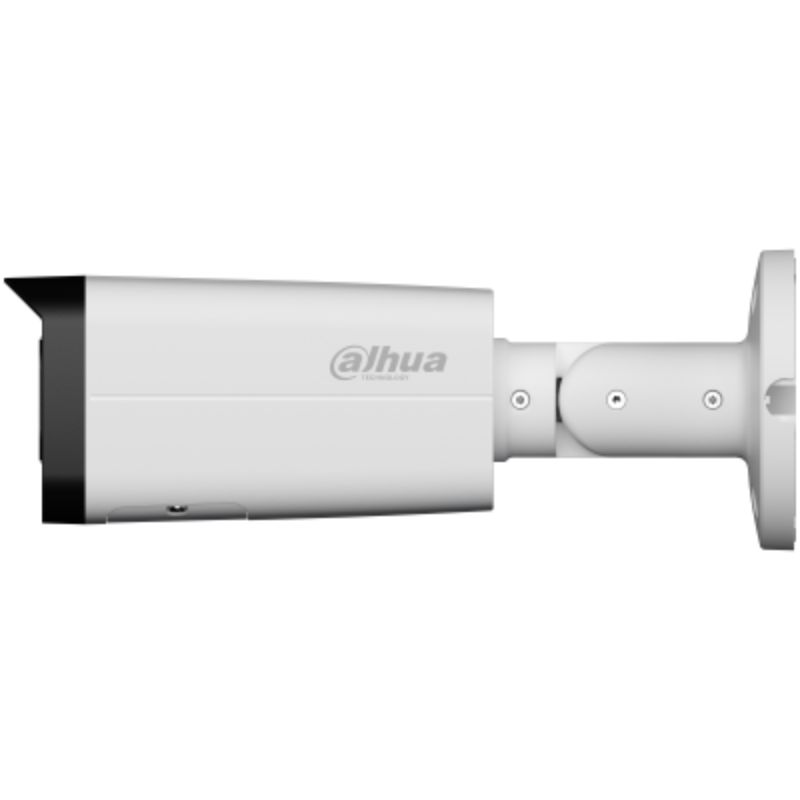

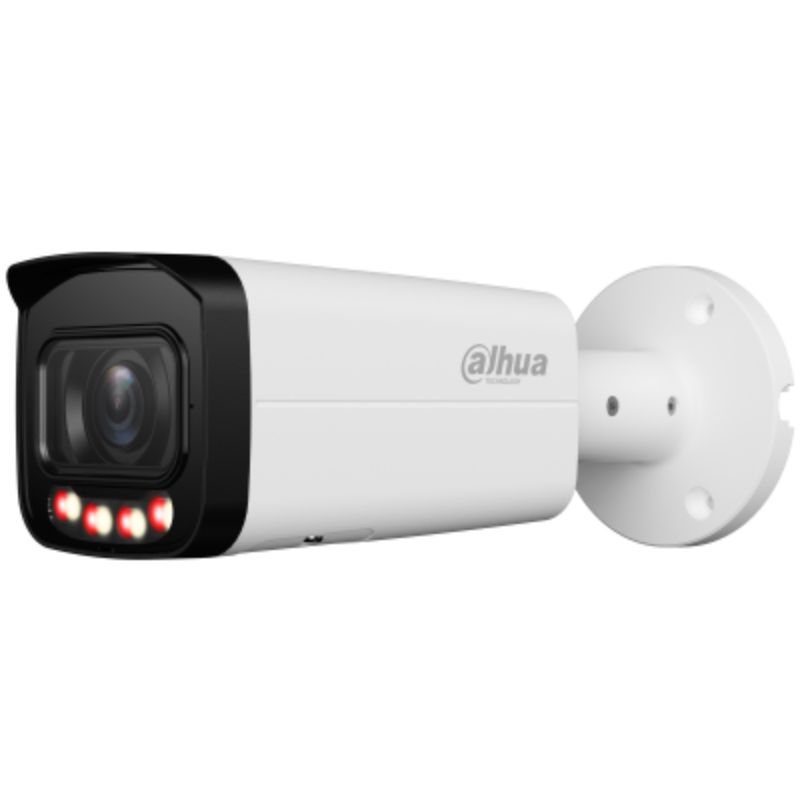

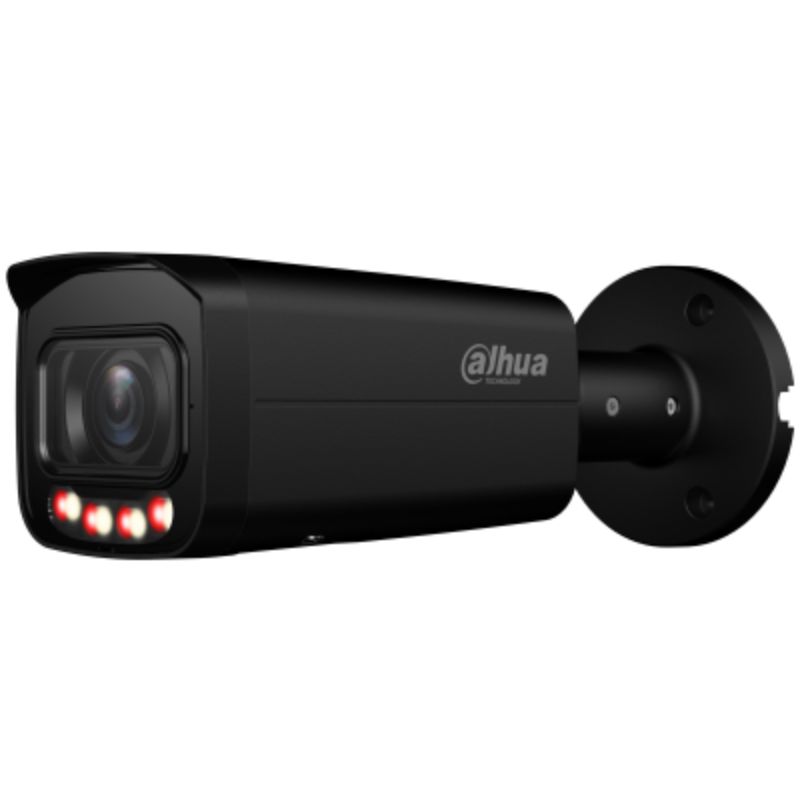

Dahua HFW2649T-ZAS-IL
6MP Smart Dual Light Vari-focal Bullet Network Camera |
||||||
| A 6 MP Smart Dual Light bullet camera pairing motorized varifocal zoom with auto IR/warm-light switching, suited to entrances and perimeter runs needing full-color night capture at longer range. This model is supplied and supported by an experienced Elv contractor and established Elv company in Malaysia. | ||||||
|
||||||
|
||||||
|
Speak with Elite ELV about product supply, CCTV installation, system configuration or a commercial site survey. |
Specification
The essential technical information is presented first. Detailed engineering specifications remain available in the official PDF datasheet. Elite ELV can integrate this camera into a complete cctv security system, supported by professional security system planning and a coordinated door access control system.
Features | Details |
|---|---|
Camera Type | 6MP Smart Dual Light Vari-focal Bullet Network Camera
|
Image Sensor | 1/2.7″ CMOS
|
Max Resolution | 3288 x 1850 (6MP)@20fps; 2688×1520@25/30fps
|
Lens | Motorized varifocal, 2.7-13.5 mm
|
Supplement Light | IR up to 40 m; warm white light up to 40 m
|
Detection Features | Human/vehicle classification, tripwire, intrusion
|
Video Compression | H.265/H.264 |
Audio | Built-in mic
|
Power | 12VDC/PoE (802.3af) |
Protection | IP67
|
Need sensor, frame rate, protocol, DORI or environmental details?
CCTV System for Commercial Properties
The camera supports common indoor and sheltered outdoor surveillance requirements across commercial and industrial environments. These deployments can form part of a wider Elv system installation.
01
Office Buildings
02
Retail Premises
Improve visibility across storefronts, counters, aisles and stock areas.
03
Warehouses
Support surveillance at loading zones, storage areas and access points.
04
Factories
Monitor selected production areas, gates and operational zones.
Product Supply with Professional CCTV Installation
Elite ELV supports commercial CCTV projects with system planning, equipment selection and complete implementation, helping each camera operate as part of a reliable security system. Larger sites can also integrate Ubiquiti Malaysia solutions with professional network cabling installation to keep every device connected.
-
Site assessment and camera planning
-
Structured cabling and PoE setup
-
Testing and commissioning
-
CCTV equipment supply
-
NVR and remote viewing configuration
-
Maintenance and technical support
Share your site type, coverage requirements and project location with the Elite ELV team.
Related Products
You might also like these to build out your CCTV coverage and connect it with your wider ELV system.
Frequently Asked Questions
What is the Dahua HFW2649T-ZAS-IL used for?
It is a 6 MP Smart Dual Light bullet camera suited to entrances and perimeter runs needing full-color night capture at longer range than the eyeball variant.
What is Smart Dual Light?
It automatically switches between infrared and warm white light illumination when a target is detected, giving full-color video at night.
Can the lens be adjusted after installation?
Yes. It has a motorized varifocal lens (2.7-13.5 mm) for on-site framing adjustment.
Is this camera suitable for outdoor installation?
Yes. It is rated IP67 for water and dust resistance.
Can this camera be powered over Ethernet (PoE)?
Yes. It supports 12 VDC power or PoE under IEEE 802.3af. You can see similar systems in action in our case study page.
Does Elite ELV supply and install this camera?
Yes. Elite ELV supports commercial CCTV projects with equipment supply, structured cabling, PoE setup, NVR configuration, testing and after-sales support. If you are comparing options, our Dahua HDW2649T-ZS-IL is a popular alternative worth reviewing.
