Hikvision DS-2CD2743G2-IZS
4 MP AcuSense Motorized Varifocal Dome Network Camera |
||||||
| A 4 MP AcuSense motorized varifocal dome camera with deep-learning human/vehicle classification and line-crossing/intrusion detection, built for indoor and covered outdoor areas needing accurate perimeter alerting with fewer false alarms. This model is supplied and supported by an experienced Elv contractor and established Elv company in Malaysia. | ||||||
|
||||||
|
||||||
|
Speak with Elite ELV about product supply, CCTV installation, system configuration or a commercial site survey. |
Specification
The essential technical information is presented first. Detailed engineering specifications remain available in the official PDF datasheet. Elite ELV can integrate this camera into a complete cctv security system, supported by professional security system planning and a coordinated door access control system.
Features | Details |
|---|---|
Camera Type | 4 MP AcuSense Motorized Varifocal Dome Network Camera |
Image Sensor | 1/3″ Progressive Scan CMOS
|
Max Resolution | 2688 x 1520
|
Lens | Motorized varifocal, 2.8 to 12 mm, F1.6
|
Min. Illumination | Color 0.005 Lux (F1.6, AGC ON); 0 Lux with IR
|
IR Range | Up to 40 m, 850 nm wavelength |
WDR | 120 dB
|
Video Compression | H.265+/H.265/H.264+/H.264 (main, sub, third stream) |
Smart Events | Line crossing detection, intrusion detection, face detection
|
Network Storage | microSD/SDHC/SDXC up to 256 GB, plus NAS (NFS, SMB/CIFS)
|
Power | 12 VDC +-25% (max 10.5 W) or PoE 802.3af Class 3 (max 12.5 W) |
Protection | IP67 (water/dust), IK10 (vandal) |
Dimensions | Diameter 153.3 mm x 111.6 mm
|
Weight | Approx. 880 g
|
Operating Temp | -30 C to 60 C |
Need sensor, frame rate, protocol, DORI or environmental details?
CCTV System for Commercial Properties
The camera supports common indoor and sheltered outdoor surveillance requirements across commercial and industrial environments. These deployments can form part of a wider Elv system installation.
01
Office Buildings
02
Retail Premises
Improve visibility across storefronts, counters, aisles and stock areas.
03
Warehouses
Support surveillance at loading zones, storage areas and access points.
04
Factories
Monitor selected production areas, gates and operational zones.
Product Supply with Professional CCTV Installation
Elite ELV supports commercial CCTV projects with system planning, equipment selection and complete implementation, helping each camera operate as part of a reliable security system. Larger sites can also integrate Ubiquiti Malaysia solutions with professional network cabling installation to keep every device connected.
-
Site assessment and camera planning
-
Structured cabling and PoE setup
-
Testing and commissioning
-
CCTV equipment supply
-
NVR and remote viewing configuration
-
Maintenance and technical support
Share your site type, coverage requirements and project location with the Elite ELV team.
Related Products
You might also like these to build out your CCTV coverage and connect it with your wider ELV system.
Frequently Asked Questions
What is the Hikvision DS-2CD2743G2-IZS used for?
It is a 4 MP AcuSense motorized varifocal dome camera built for indoor and covered outdoor areas needing accurate perimeter alerting with fewer false alarms.
What does AcuSense mean on this camera?
AcuSense uses deep-learning algorithms to classify humans and vehicles, reducing false alarms from irrelevant motion such as leaves or animals, and enabling reliable line crossing and intrusion detection.
Can the lens be adjusted after installation?
Yes. It has a motorized varifocal lens (2.8-12 mm), letting installers remotely fine-tune the field of view on-site.
Is this camera suitable for outdoor installation?
Yes. It is rated IP67 for water/dust resistance and IK10 for vandal resistance, operating from -30°C to 60°C.
Can footage be stored without a separate NVR?
Yes. It supports microSD/SDHC/SDXC storage up to 256 GB, plus NAS storage over NFS or SMB/CIFS. You can see similar systems in action in our case study page.
Does Elite ELV supply and install this camera?

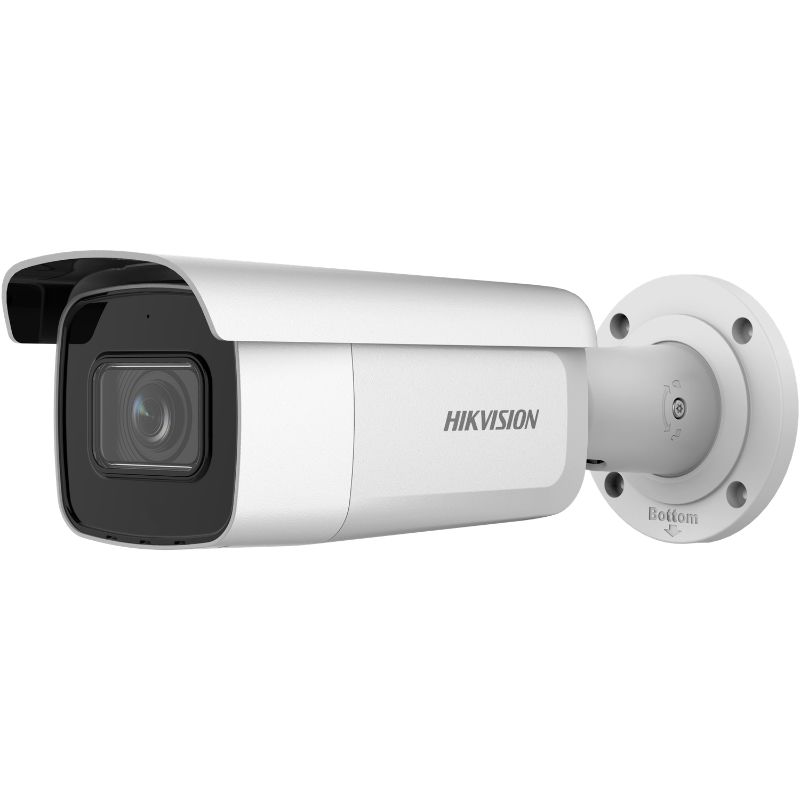

Yes. Elite ELV supports commercial CCTV projects with equipment supply, structured cabling, PoE setup, NVR configuration, testing and after-sales support. If you are comparing options, our Hikvision DS-2CD2643G2-IZS is a popular alternative worth reviewing.
