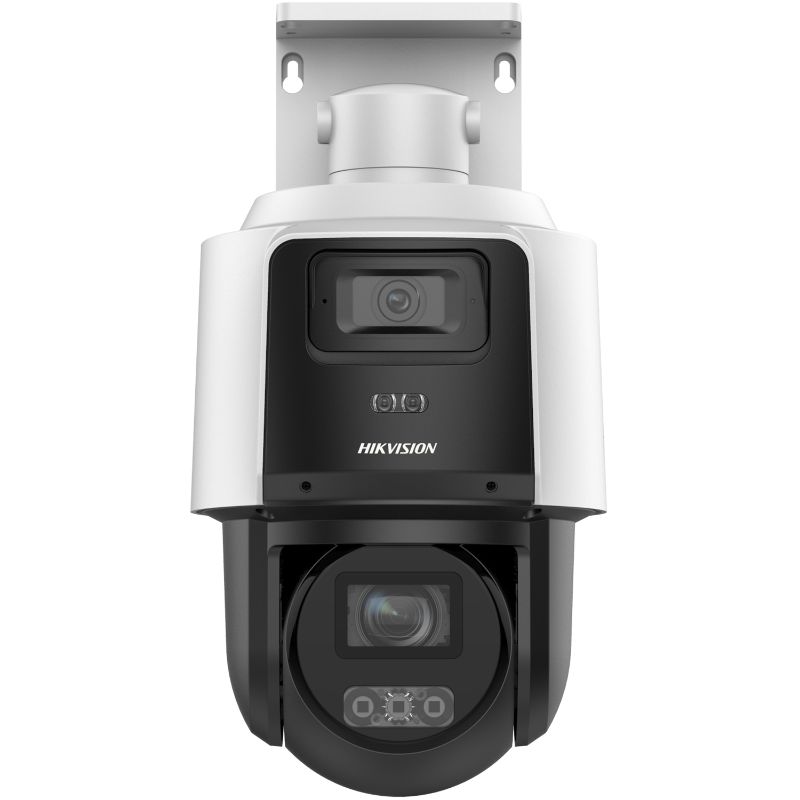

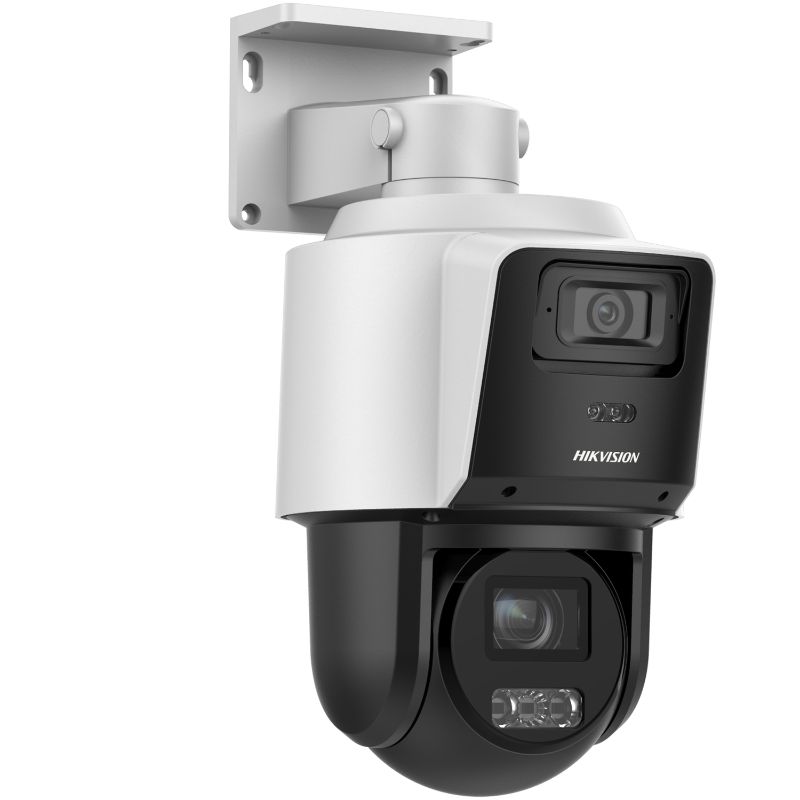

Hikvision DS-2SE3C404MWG-E/14
TandemVu 4MP+4MP 4x PoE PTZ Network Camera |
||||||
| A TandemVu PTZ camera pairing a fixed 4 MP bullet with a 4x zoom 4 MP PTZ head in one unit, so operators get full-scene context and close-up detail simultaneously — well suited to parking lots, yards, and open perimeters. This model is supplied and supported by an experienced Elv contractor and established Elv company in Malaysia. | ||||||
|
||||||
|
||||||
|
Speak with Elite ELV about product supply, CCTV installation, system configuration or a commercial site survey. |
Specification
The essential technical information is presented first. Detailed engineering specifications remain available in the official PDF datasheet. Elite ELV can integrate this camera into a complete cctv security system, supported by professional security system planning and a coordinated door access control system.
Features | Details |
|---|---|
Camera Type | TandemVu 4MP+4MP 4x PoE PTZ Network Camera |
Bullet Channel | 1/2.8″ CMOS, 2560 x 1440, 2.8 mm fixed lens |
PTZ Channel | 1/2.8″ CMOS, 2560 x 1440, 2.8-12 mm, 4x optical / 16x digital zoom |
Min. Illumination | Color 0.01 Lux, B/W 0.005 Lux (F1.6, AGC ON) |
Supplement Light | Bullet – hybrid IR/white up to 30 m; PTZ – IR up to 40 m |
Pan Range | 0-350 degrees; Tilt (PTZ): -5 to 90 degrees |
Presets | 300; Patrol Scan: 8 patrols, up to 32 presets each |
Video Compression | H.265, H.264, MJPEG |
Smart Events | Line crossing detection, intrusion detection |
On-board Storage | microSD/SDHC/SDXC up to 512 GB |
Power | 12 VDC, max 13.5 W, PoE+ |
Protection | IP66 |
Dimensions | 311.5 mm x 223.5 mm x 156 mm |
Weight | Approx. 1.37 kg |
Operating Temp | -30 C to 50 C |
Need sensor, frame rate, protocol, DORI or environmental details?
CCTV System for Commercial Properties
The camera supports common indoor and sheltered outdoor surveillance requirements across commercial and industrial environments. These deployments can form part of a wider Elv system installation.
01
Office Buildings
02
Retail Premises
Improve visibility across storefronts, counters, aisles and stock areas.
03
Warehouses
Support surveillance at loading zones, storage areas and access points.
04
Factories
Monitor selected production areas, gates and operational zones.
Product Supply with Professional CCTV Installation
Elite ELV supports commercial CCTV projects with system planning, equipment selection and complete implementation, helping each camera operate as part of a reliable security system. Larger sites can also integrate Ubiquiti Malaysia solutions with professional network cabling installation to keep every device connected.
-
Site assessment and camera planning
-
Structured cabling and PoE setup
-
Testing and commissioning
-
CCTV equipment supply
-
NVR and remote viewing configuration
-
Maintenance and technical support
Share your site type, coverage requirements and project location with the Elite ELV team.
Related Products
You might also like these to build out your CCTV coverage and connect it with your wider ELV system.
Frequently Asked Questions
What is the Hikvision DS-2SE3C404MWG-E/14 used for?
It is a TandemVu PTZ camera combining a fixed 4 MP bullet view with a 4x zoom 4 MP PTZ head, giving both full-scene context and close-up detail from one unit — suited to parking lots, yards and open perimeters.
Does this camera support night vision?
Yes. The bullet channel uses hybrid IR/white light illumination up to 30 m, and the PTZ channel adds IR up to 40 m.
Can footage be stored without a separate NVR?
Yes. It supports microSD/SDHC/SDXC on-board storage up to 512 GB.
What smart detection features does it include?
It includes line crossing detection and intrusion detection, alongside human and vehicle detection across both camera channels.
Can this camera be powered over Ethernet (PoE)?
Yes. It is PoE+ powered with a maximum consumption of 13.5 W. You can see similar systems in action in our case study page.
Does Elite ELV supply and install this camera?
Yes. Elite ELV supports commercial CCTV projects with equipment supply, structured cabling, PoE setup, NVR configuration, testing and after-sales support. If you are comparing options, our Hikvision DS-2DE4425IW-DE(T5) is a popular alternative worth reviewing.
