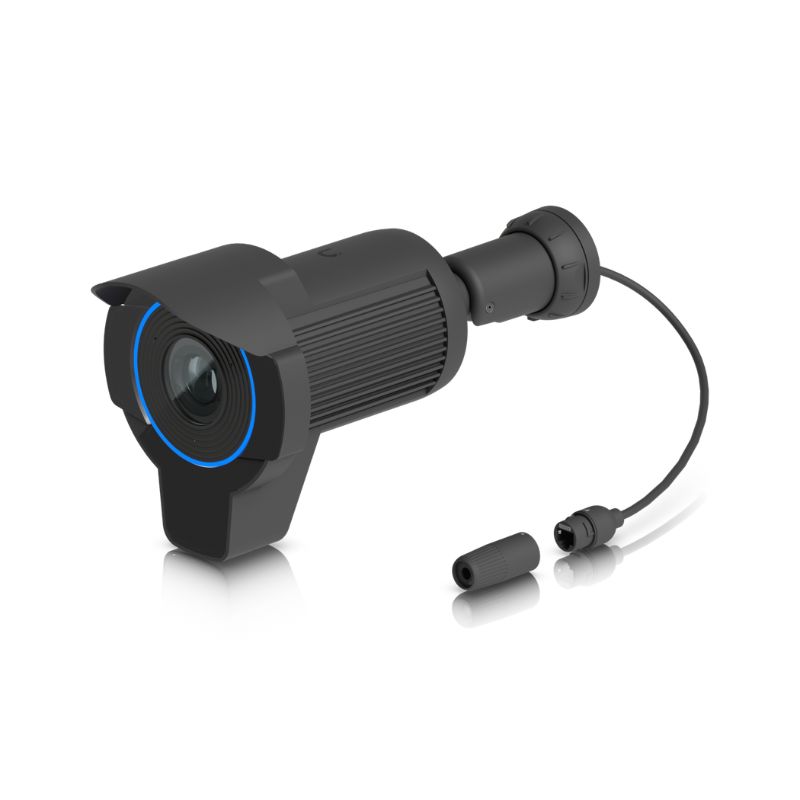

Ubiquiti UVC-AI-LPR
AI-specialized License Plate Recognition Camera (UniFi Protect) |
||||||
| A purpose-built license plate recognition camera with 3x optical zoom, tuned to read reflective and non-reflective plates on vehicles moving up to 90 km/h — ideal for gates, parking entries, and access-controlled lots. This model is supplied and supported by an experienced Elv contractor and established Elv company in Malaysia. | ||||||
|
||||||
|
||||||
|
Speak with Elite ELV about product supply, CCTV installation, system configuration or a commercial site survey. |
Specification
The essential technical information is presented first. Detailed engineering specifications remain available in the official PDF datasheet. Elite ELV can integrate this camera into a complete cctv security system, supported by professional security system planning and a coordinated door access control system.
Features | Details |
|---|---|
Camera Type | AI-specialized License Plate Recognition Camera (UniFi Protect)
|
Resolution | 4K (8 MP effective)
|
Zoom | 3x optical |
Field of View | Wide H 109.9/V 60/D 127.7 deg; Tele H 35/V 19.8/D 40 deg
|
IR Night Vision | 15 m
|
AI Features | License plate recognition (reflective/non-reflective, up to 90 km/h), smart detections |
Audio | Microphone |
Networking | GbE RJ45
|
Weatherproofing | IP66 |
Tamper Resistance | IK04 |
Mounting | Wall, ceiling, pole (included); junction box, angled base (optional)
|
Dimensions | 130 x 151.4 x 302.9 mm |
Need sensor, frame rate, protocol, DORI or environmental details?
CCTV System for Commercial Properties
The camera supports common indoor and sheltered outdoor surveillance requirements across commercial and industrial environments. These deployments can form part of a wider Elv system installation.
01
Office Buildings
02
Retail Premises
Improve visibility across storefronts, counters, aisles and stock areas.
03
Warehouses
Support surveillance at loading zones, storage areas and access points.
04
Factories
Monitor selected production areas, gates and operational zones.
Product Supply with Professional CCTV Installation
Elite ELV supports commercial CCTV projects with system planning, equipment selection and complete implementation, helping each camera operate as part of a reliable security system. Larger sites can also integrate Ubiquiti Malaysia solutions with professional network cabling installation to keep every device connected.
-
Site assessment and camera planning
-
Structured cabling and PoE setup
-
Testing and commissioning
-
CCTV equipment supply
-
NVR and remote viewing configuration
-
Maintenance and technical support
Share your site type, coverage requirements and project location with the Elite ELV team.
Related Products
You might also like these to build out your CCTV coverage and connect it with your wider ELV system.
Frequently Asked Questions
What is the Ubiquiti UVC-AI-LPR used for?
It is a purpose-built license plate recognition camera for gates, parking entries and access-controlled lots, tuned to read plates on vehicles moving up to 90 km/h.
Can it read reflective license plates?
Yes. It is tuned to read both reflective and non-reflective plates.
Does this camera support night vision?
Yes. It has IR night vision up to 15 m.

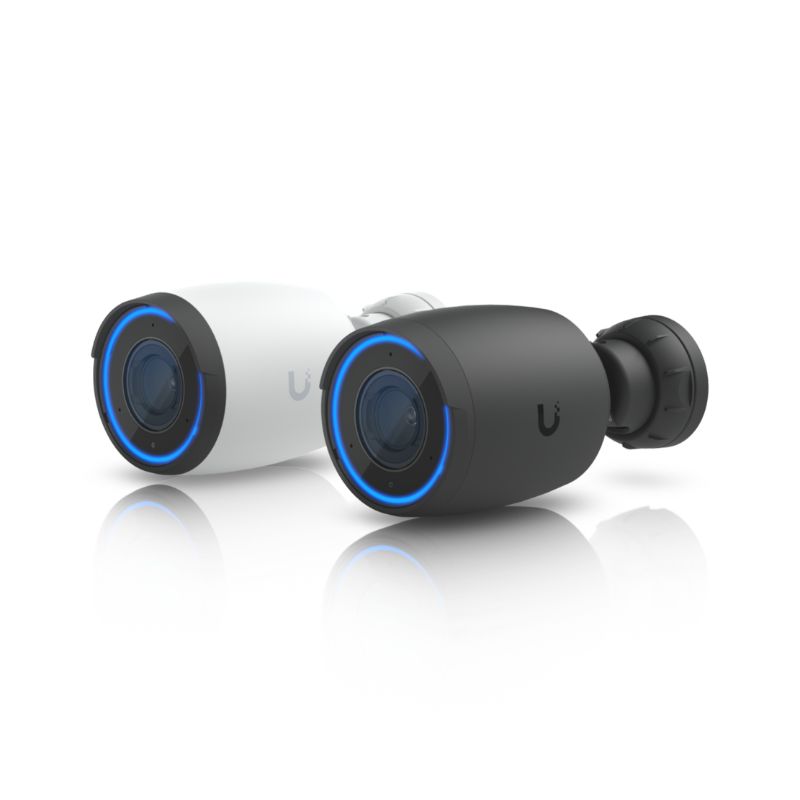

How does this differ from the general-purpose UVC-AI-Pro?
This camera is purpose-built and optimized specifically for license plate recognition, whereas the UVC-AI-Pro is a general-purpose 4K camera with broader face and object recognition.
Is this camera suitable for outdoor installation?
Yes. It is rated IP66 for weatherproofing with IK04 tamper resistance. You can see similar systems in action in our case study page.
Does Elite ELV supply and install this camera?
Yes. Elite ELV supports commercial CCTV projects with equipment supply, structured cabling, PoE setup, NVR configuration, testing and after-sales support. If you are comparing options, our Ubiquiti UVC-G6-Pro-Turret is a popular alternative worth reviewing.
